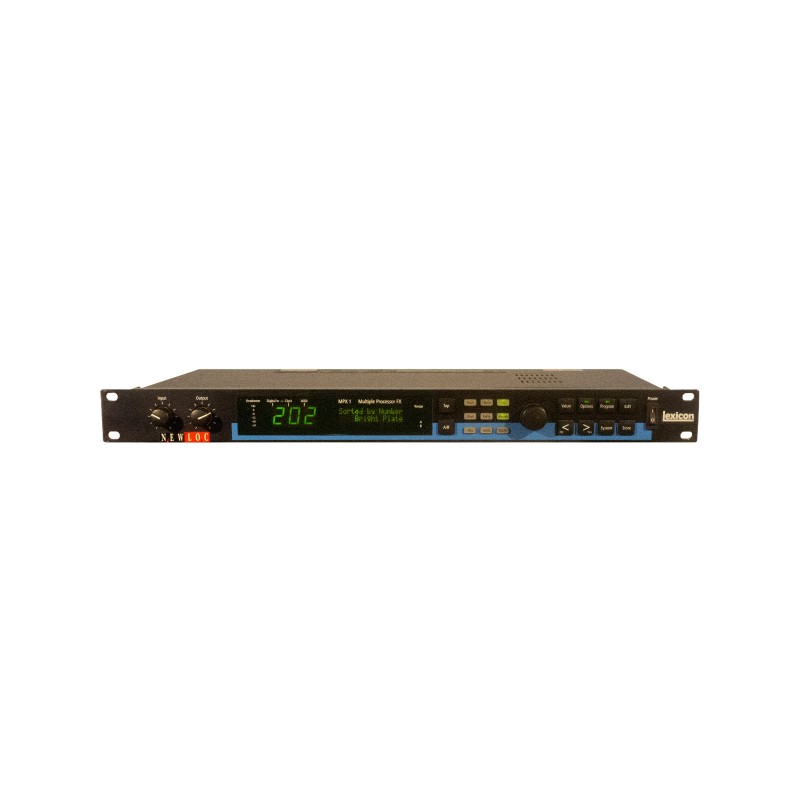

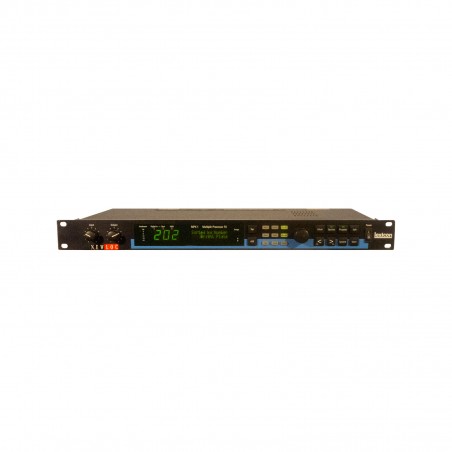

LEXICON Multi-effects digital très bonne qualité !
Le MPX 1 est le processeur «multi-effets». Une technologie multiprocesseur FX combinée à un panneau avant
interactif. Une complète connectique à l'arrière professionnelle -
Détail des caractéristiques :
Analog Audio Input XLR and 1/4" balanced (T/R/S)Input Level -2dBu to +20dBu, balanced;
-14dBu to +8dBu, unbalanced
Input Impedance 100k½, balanced;50k½, unbalanced
Analog Audio Output XLR and 1/4"balanced (T/R/S)
Output Level +18dBu
Output Impedance 600½unbalanced
Digital Audio Input Coaxial RCA
Format 24-bit S/PDIF
Sample Rate 44.1kHz
Digital Audio Output Coaxial RCA
Format 24-bit S/PDIF
Sample Rate 44.1kHz
Conversion 24-bit A/D;24-bit D/A
Internal Audio DSP 20-bit;32-bit
Frequency Response 20Hz - 20kHz ±1dB
Crosstalk -60dB
THD 0.01%, 20Hz - 20kHz
Dynamic Range D/A:>95dB typical, 20Hz - 20kHz, unweighted
A/D:>90dB typical, 20Hz - 20kHz, unweighted
A/A:>95dB typical, 20Hz - 20kHz, unweighted
MIDI Interface 7-pin DIN connector for MIDI IN and powered bidirectional remote;
5-pin DIN connectors for MIDI THRU and OUT
Footswitch 1/4"T/R/S connector for bypass and tap
Footpedal 1/4"T/R/S connector (10k½- 100k½impedance)
Power Requirements 100 - 240 volts AC, 50 - 60Hz, 25 watts
(3-pin IEC connector)
Remote Power In 2.5 mm 9 volts AC (not included)
Dimensions 19" W x 1.75" H (1U) x 9" D
(483 x 45 x 289 mm), rack mount standard
Weight 6.125 lbs.(2.8 kg)
